Schema documentation for component HTTPFragmentRef

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Used by

Element HTTPFragmentRef

Annotations

https://kb.sos-berlin.com/display/PKB/YADE+Parameter+Reference+-+HTTPFragment

References

Schema: HTTPFragmentRef, HTTPFragmentRef

Notes

This element references the fragment that is used for an HTTP file transfer operation. Any number of reusable HTTPFragment elements can be configured and are distinguished by YADE based on their name attribute.

The reference to a fragment is based on the value of the ref attribute of this element to the corresponding name attribute of the HTTPFragment element.

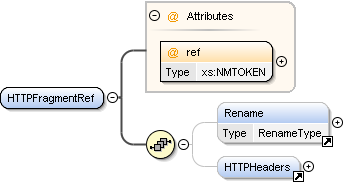

Diagram

Properties

content

complex

Used by

Complex Types	ReadableFragmentRefType, WriteableFragmentRefType
Elements	AlternativeCopySourceFragmentRef, AlternativeCopyTargetFragmentRef, AlternativeMoveSourceFragmentRef, AlternativeMoveTargetFragmentRef, AlternativeRemoveSourceFragmentRef

Model

Rename{0,1} , HTTPHeaders{0,1}

Instance

<HTTPFragmentRef ref="">
  <Rename>{0,1}</Rename>
  <HTTPHeaders>{0,1}</HTTPHeaders>
</HTTPFragmentRef>

Attributes

QName	Type	Use	Annotation
ref	xs:NMTOKEN	required	This attribute identifies the fragment that is used for the HTTP protocol.

Attribute HTTPFragmentRef / @ref

Annotations

This attribute identifies the fragment that is used for the HTTP protocol.

Type

xs:NMTOKEN

Properties

use	required

Used by

Element

HTTPFragmentRef
