Element Documentation
Annotations

https://kb.sos-berlin.com/display/PKB/YADE+Parameter+Reference+-+Documentation

References Notes

A Documentation can be added to a file transfer configuration that includes a description and a number of links.

The Documentation can be added either at Profile level or at General level:

  • Profile: a specific documentation is used for file transfers from this profile.
  • General: a general documentation is used for file transfers from all Profiles.
The more sppecific Documentation settings from a Profile are used if available. Otherwise the General settings are applied.

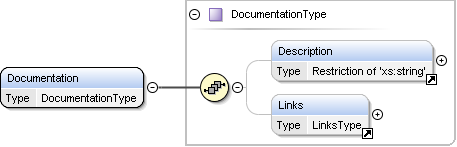

Diagram
Diagram YADE_configuration_v1_12_xsd_Element_Description.tmp#Description YADE_configuration_v1_12_xsd_Element_Links.tmp#Links YADE_configuration_v1_12_xsd_Complex_Type_DocumentationType.tmp#DocumentationType
Type DocumentationType
Properties
content complex
Used by
Elements General, Profile
Model
Instance
<Documentation>
  <Description>{0,1}</Description>
  <Links>{0,1}</Links>
</Documentation>
