Element WebDAVFragmentRef
Annotations

https://kb.sos-berlin.com/display/PKB/YADE+Parameter+Reference+-+WebDAVFragmentRef

References Notes

This element references the fragment that is used for an WebDAV file transfer operation. Any number of reusable WebDAVFragment elements can be configured and are distinguished by YADE based on their name attribute.

The reference to a fragment is based on the value of the ref attribute of this element to the corresponding name attribute of the WebDAVFragment element.

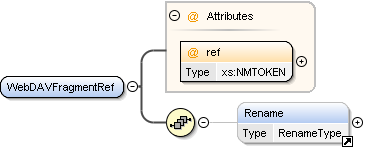

Diagram
Diagram YADE_configuration_v1_0_xsd_Element_WebDAVFragmentRef.tmp#WebDAVFragmentRef_ref YADE_configuration_v1_0_xsd_Element_Rename.tmp#Rename
Properties
content complex
Used by
Model
Instance
<WebDAVFragmentRef ref="">
  <Rename>{0,1}</Rename>
</WebDAVFragmentRef>
Attributes
QName Type Use Annotation
ref xs:NMTOKEN required

This attribute identifies the fragment that is used for the WebDAV protocol.

Attribute WebDAVFragmentRef / @ref
Annotations

This attribute identifies the fragment that is used for the WebDAV protocol.

Type xs:NMTOKEN
Properties
use required
Used by
