Element SMBFragmentRef
Annotations

https://kb.sos-berlin.com/display/PKB/YADE+Parameter+Reference+-+SMBFragmentRef

References Notes

This element references the fragment that is used for an SMB file transfer operation. Any number of reusable SMBFragment elements can be configured and are distinguished by YADE based on their name attribute.

The reference to a fragment is based on the value of the ref attribute of this element to the corresponding name attribute of the SMBFragment element.

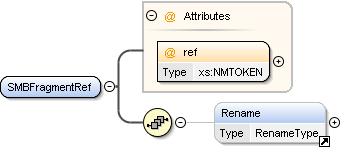

Diagram
Diagram YADE_configuration_v1_0_xsd_Element_SMBFragmentRef.tmp#SMBFragmentRef_ref YADE_configuration_v1_0_xsd_Element_Rename.tmp#Rename
Properties
content complex
Used by
Model
Instance

<SMBFragmentRef ref="">
  <Rename>{0,1}</Rename>
</SMBFragmentRef>
Attributes
QName Type Use Annotation
ref xs:NMTOKEN required

This attribute identifies the fragment that is used for the SMB protocol.

Attribute SMBFragmentRef / @ref
Annotations

This attribute identifies the fragment that is used for the SMB protocol.

Type xs:NMTOKEN
Properties
use required
Used by
Element SMBFragmentRef
