Schema documentation for component FTPSFragmentRef

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Used by

Element FTPSFragmentRef

Annotations

https://kb.sos-berlin.com/display/PKB/YADE+Parameter+Reference+-+FTPSFragmentRef

References

Schema: FTPSFragmentRef
Parameter: FTPSFragmentRef

Notes

This element references the fragment that is used for an FTPS file transfer operation. Any number of reusable FTPSFragment elements can be configured and are distinguished by YADE based on their name attribute.

The reference to a fragment is based on the value of the ref attribute of this element to the corresponding name attribute of the FTPSFragment element.

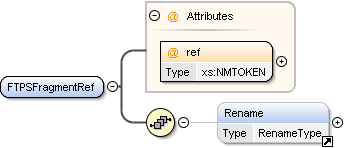

Diagram

Properties

content

complex

Used by

Complex Types	ListableFragmentRefType, ReadableFragmentRefType, WriteableFragmentRefType
Elements	AlternativeCopySourceFragmentRef, AlternativeCopyTargetFragmentRef, AlternativeGetListSourceFragmentRef, AlternativeMoveSourceFragmentRef, AlternativeMoveTargetFragmentRef, AlternativeRemoveSourceFragmentRef

Model

Rename{0,1}

Instance

<FTPSFragmentRef ref="">
  <Rename>{0,1}</Rename>
</FTPSFragmentRef>

Attributes

QName	Type	Use	Annotation
ref	xs:NMTOKEN	required	This attribute identifies the fragment that is used for the FTPS protocol.

Attribute FTPSFragmentRef / @ref

Annotations

This attribute identifies the fragment that is used for the FTPS protocol.

Type

xs:NMTOKEN

Properties

use	required

Used by

Element

FTPSFragmentRef
