Schema documentation for component FTPFragment

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Used by

Element FTPFragment

Annotations

https://kb.sos-berlin.com/display/PKB/YADE+Parameter+Reference+-+FTPFragment

References

Schema: FTPFragment
Parameter: FTPFragment
Mapping:
- protocol

Notes

This element includes the parameters for an FTP file transfer connection including BasicAuthentication and BasicConnection configuration items.

Any number of fragments can be configured and are distinguished by YADE according to their name attribute. Therefore a unique identifier should be specified for the name attribute.

A fragment is referenced by a transfer Profile using the value of the FTPFragmentRef and its ref attribute.

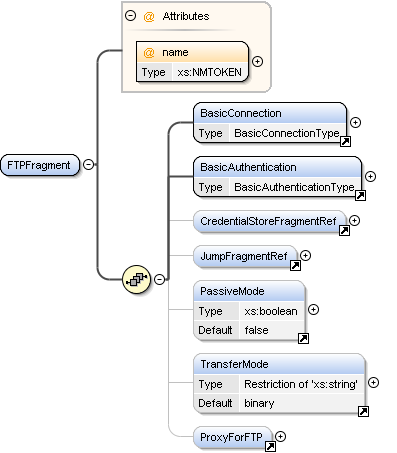

Diagram

Properties

content

complex

Used by

Element

ProtocolFragments

Model

BasicConnection , BasicAuthentication , CredentialStoreFragmentRef{0,1} , JumpFragmentRef{0,1} , PassiveMode{0,1} , TransferMode{0,1} , ProxyForFTP{0,1}

Instance

<FTPFragment name="">
  <BasicConnection>{1,1}</BasicConnection>
  <BasicAuthentication>{1,1}</BasicAuthentication>
  <CredentialStoreFragmentRef ref="">{0,1}</CredentialStoreFragmentRef>
  <JumpFragmentRef ref="">{0,1}</JumpFragmentRef>
  <PassiveMode>{0,1}</PassiveMode>
  <TransferMode>{0,1}</TransferMode>
  <ProxyForFTP>{0,1}</ProxyForFTP>
</FTPFragment>

Attributes

QName	Type	Use	Annotation
name	xs:NMTOKEN	required	This attribute identifies the current fragment. Any number of fragments can be used and are distinguished by YADE based on their name. A fragment is referenced via this attribute value by a transfer profile.

Attribute FTPFragment / @name

Annotations

This attribute identifies the current fragment. Any number of fragments can be used and are distinguished by YADE based on their name.

A fragment is referenced via this attribute value by a transfer profile.

Type

xs:NMTOKEN

Properties

use	required

Used by

Element

FTPFragment
